Product introduction

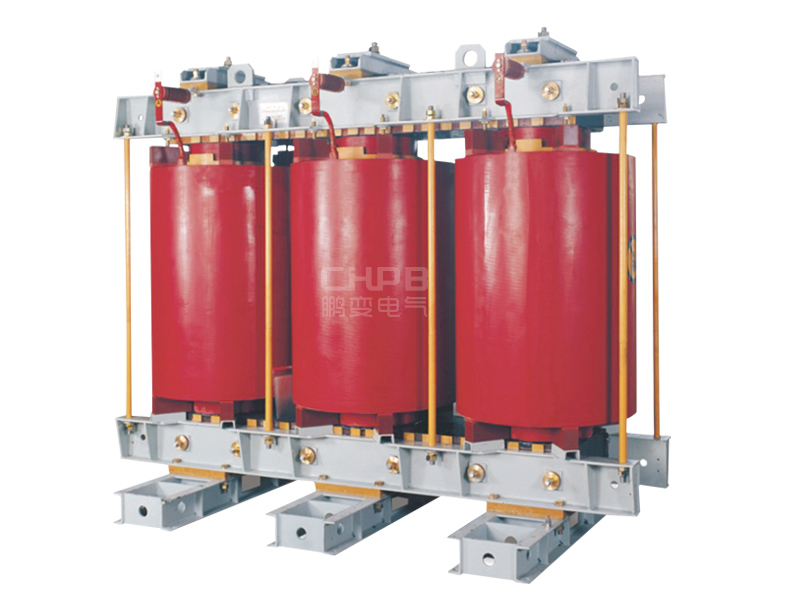

BKSC dry core shunt reactor is suitable for 35 kv and below power system and high-speed rail power supply system of high voltage parallel circuit, system transmission inductive reactive power, via the main transformer is used to compensate the capacitive current of the transmission line, prevent the voltage of the light load line, maintain the power system voltage stability, improve power factor and power system energy saving.
Product features
1, the reactor using computer optimized design, can design according to user's special requirements and fast best ideal electrical properties and structural parameters.
2, coil USES high strength double glass membrane wire winding, the high quality insulation material.
3, reactor coil by epoxy resin vacuum casting, using advanced vacuum pouring system equipment, guarantee the good performance of insulation, the characteristics of high mechanical strength.
Selects the high quality silicon steel sheet, 4, and core process using ceramic hard alloy cutting tools and production line equipment, ensure the quality of the core processing.
5, core USES the high strength glass ribbon binding hot fixed and high quality epoxy resin pouring process, its characteristic is to reduce the noise of the reactor.
6, products with resistance to burn, the characteristic of moisture proof, environmental protection, no pollution, low loss, low noise, easy installation, good electrical properties, high reliability.
Using the environment
Ambient temperature: - 5 ℃ ~ + 40 ℃
The most thermidor average temperature + 30 ℃
The hottest year average temperature 20 ℃ +
Minimum storage temperature: 25 ℃
The altitude does not exceed 1000 m
Installation site should be no serious vibration and turbulence
Air temperature is 25 ℃, relative humidity is not more than 90%
The power supply voltage waveform similar to sine wave
Installation site should be no serious effect on reactor insulating gas, steam, chemical dust and other explosive and erosion media
Reactor ontology and cabinet put oneself in another's distance, 10 kv 90 mm or more, 6 kv 60 mm or higher
Order is the basic data
When ordering, please put forward the following parameters and technical requirements in writing:
1, the reactor is rated capacity;
2, system of rated voltage and frequency;
3, the voltage of the capacitor;
4, rated reactance rate or reactance;
5, rated current, and maximum continuous current;
6, dynamic and thermal stability of current, and duration;
7, other special requirements
Product parameter

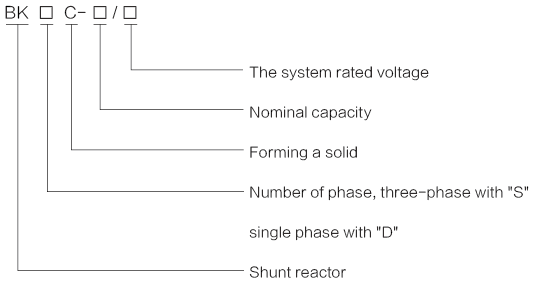

Types of meaning
