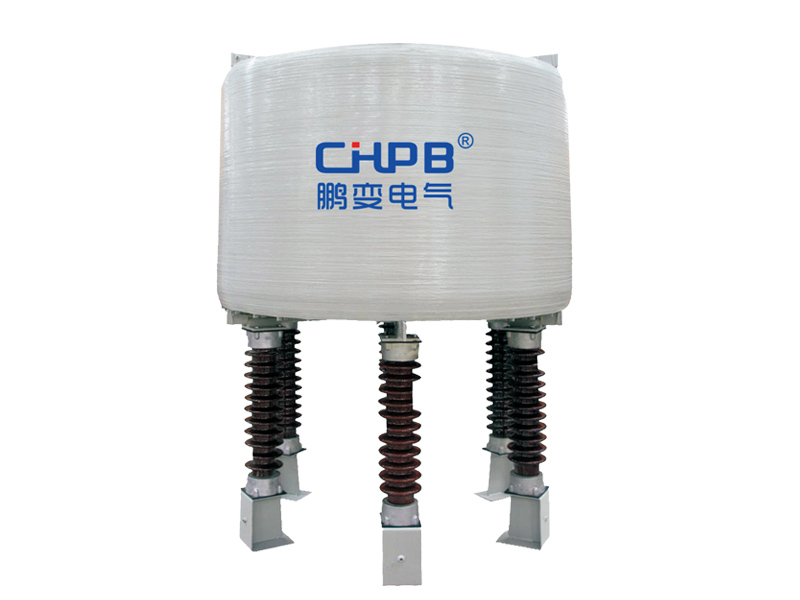

Product introduction

Classification and uses

Reactor in series and parallel connection points in two ways. Series reactor current-limiting role normally, shunt reactor is often used for reactive power compensation.

Series reactor, installing a capacitor in the capacitor circuit loop into play the role of inhibition of inrush current, but also with capacitor group of harmonic circuits, specific harmonic filtering effect.

Shunt reactor, in the ultra long distance transmission system, the connection of transformer coil on three times. Used for compensating the capacitive charging current circuit, voltage rise and operating over-voltage limit system, thus to reduce the insulation level of the system and to ensure a reliable operation.

Conditions of use

1, using place: indoor or outdoor

2, using the environment temperature:

3, height: 1000 meters (over 1000 meters in order to illustrate)

4, the installation site should be no harmful gas, steam and electrical conductivity or explosive dust

Product parameter

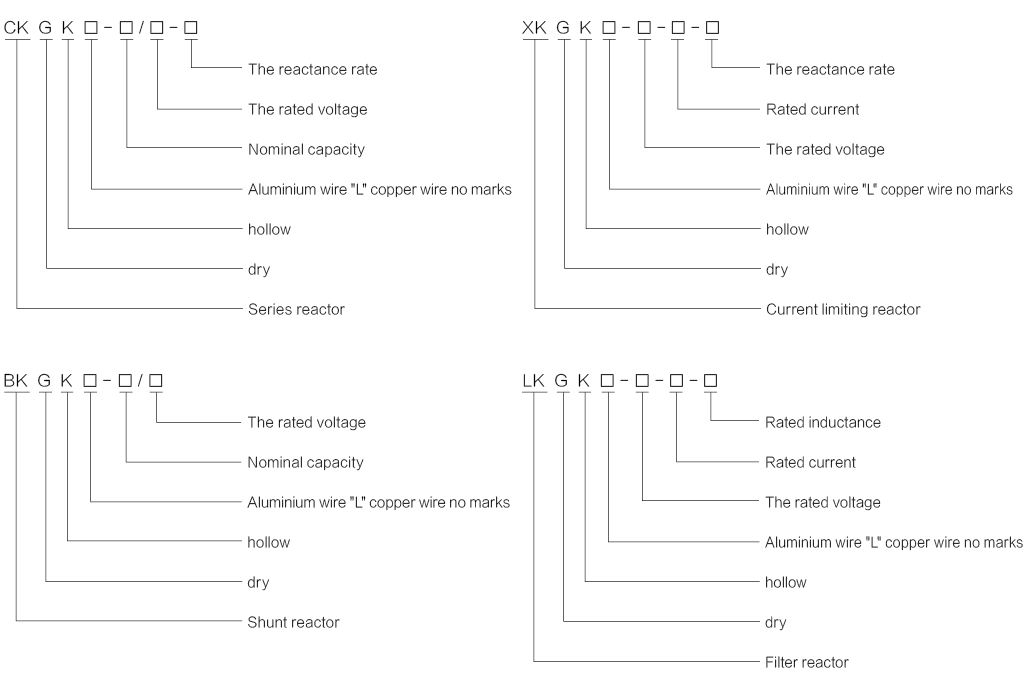

Types of meaning

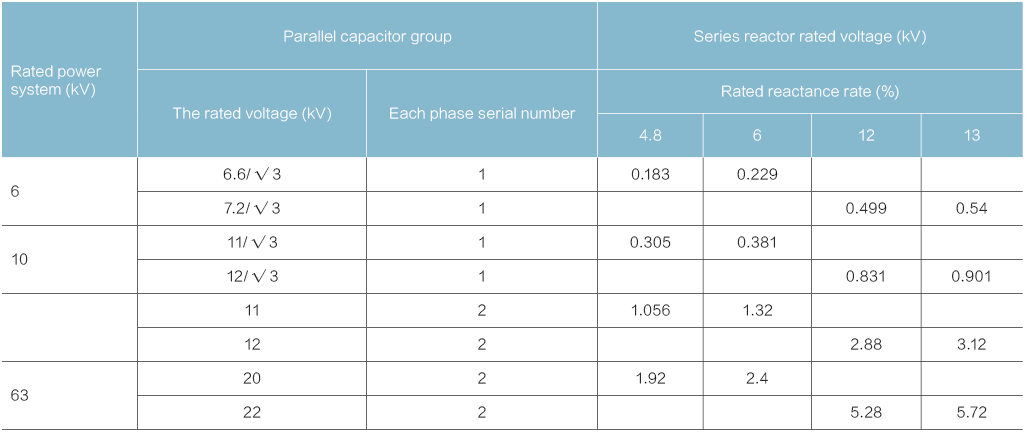

Rated voltage and the related technical parameters
