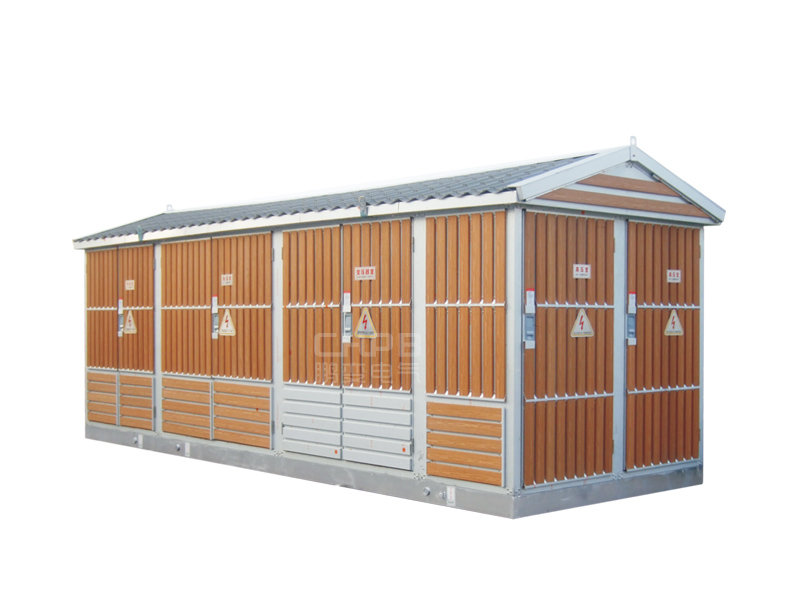

Product introduction

Widely used in city network reconstruction, residential area, high-rise buildings, industrial and mining, hotels, shopping malls, airports, docks, highway, railway, oilfield and temporary electricity facilities and other places of households inside and outside.

Conditions of use

Altitude does not exceed 1000 m;

Ambient temperature: - 25 ℃ ~ + 40 ℃;

Relative humidity: day average no greater than 95%, the monthly average no greater than 90%;

Mounting ambicnt: no fire and explosion danger, conductive dust, chemical corrosive gas and the site of violent vibration, if beyond the above conditions, the user can negotiate with our company.

Function and characteristics of the

High voltage switch equipment, transformers, low voltage switch equipment of the trinity, complete sets of strong sex;

High and low pressure protection, safe and reliable operation, simple maintenance;

Occupies little space and realizes few investment, short production cycle, mobile convenience;

Wiring scheme is flexible;

Double-layer structure unique, unique cellular structures (composite panels) shell and firm, heat insulation and cooling ventilation, beautiful, high protection grade, shell material with qin alloy, aluminum alloy, stainless steel manufacture, choi steel optional;

A variety of type: general type, villa type, compact and so on the many kinds of style;

High pressure in ring network cabinet assembly automation network terminal (FTU) realization of short circuit and reliable testing of single-phase earth fault, have "four control" function, is advantageous for the distribution network automation to upgrade.

Product parameter

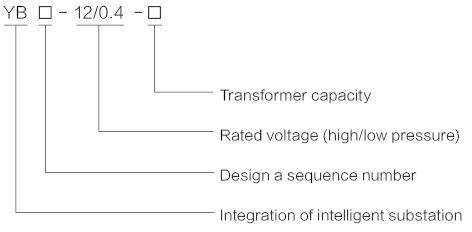

Types of meaning

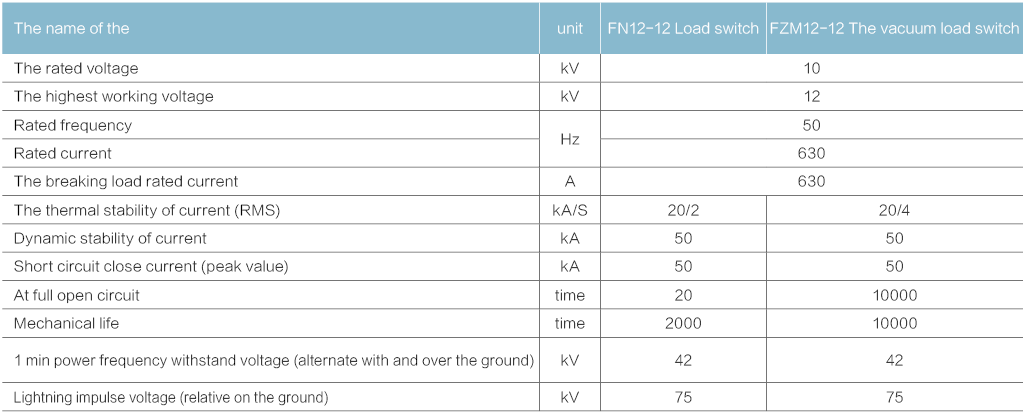

Load switch technology parameters

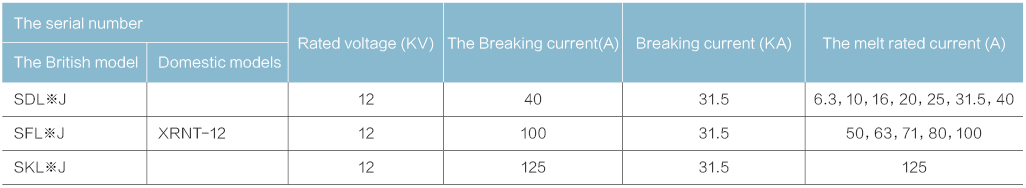

High voltage fuse technology parameters

* note: be determined by whether to install the impactor, N for no firing pin, A firing pin.
